22" Zero Flex - Weathering Steel

Create stunning, architectural garden beds with the timeless beauty of weathering steel and crisp, straight lines that never bow. Our 22" Zero Flex modular raised garden bed system features premium CorTen steel that develops a rich, rust-colored patina over time, delivering superior strength and extra depth for deep-rooted vegetables and dramatic landscape features.

Why Choose 22" Zero Flex Weathering Steel?

• Extra Depth for Serious Growing: 22" height accommodates deep-rooted crops like tomatoes, carrots, and root vegetables
• Living Finish: CorTen steel develops a beautiful rust patina that protects against corrosion while adding organic warmth to your landscape
• Superior Rigidity: Thicker 8mm top lip maintains perfectly straight lines—our sturdiest edging option
• Modular Flexibility: Mix and match panel sizes to create custom configurations—add extensions anytime
• Professional Quality: 2mm thick weathering steel panels by Straightcurve, trusted by landscape architects worldwide

Note: CorTen panels arrive in their natural pre-weathered state and will develop their signature rust patina once exposed to the elements.

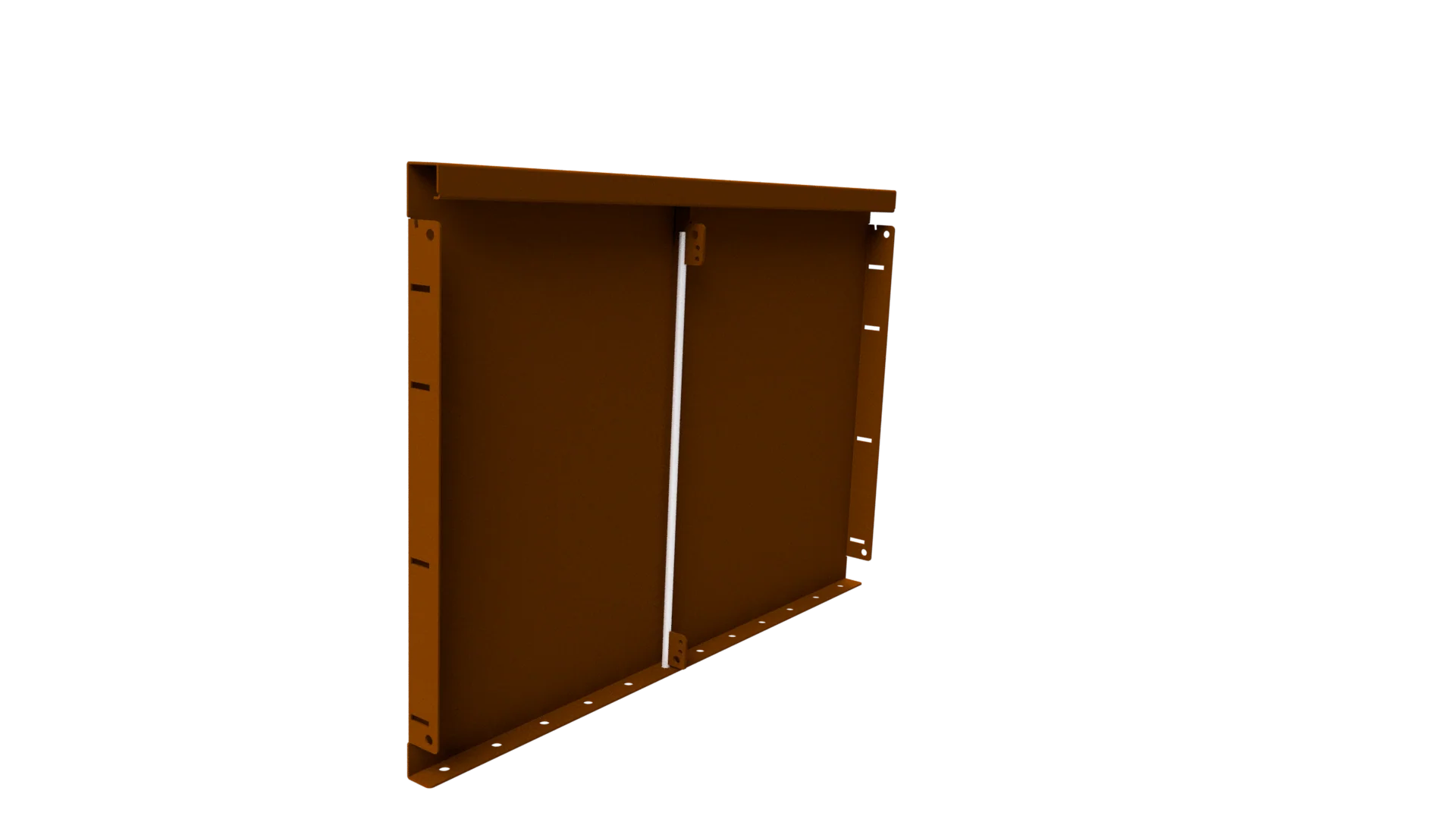

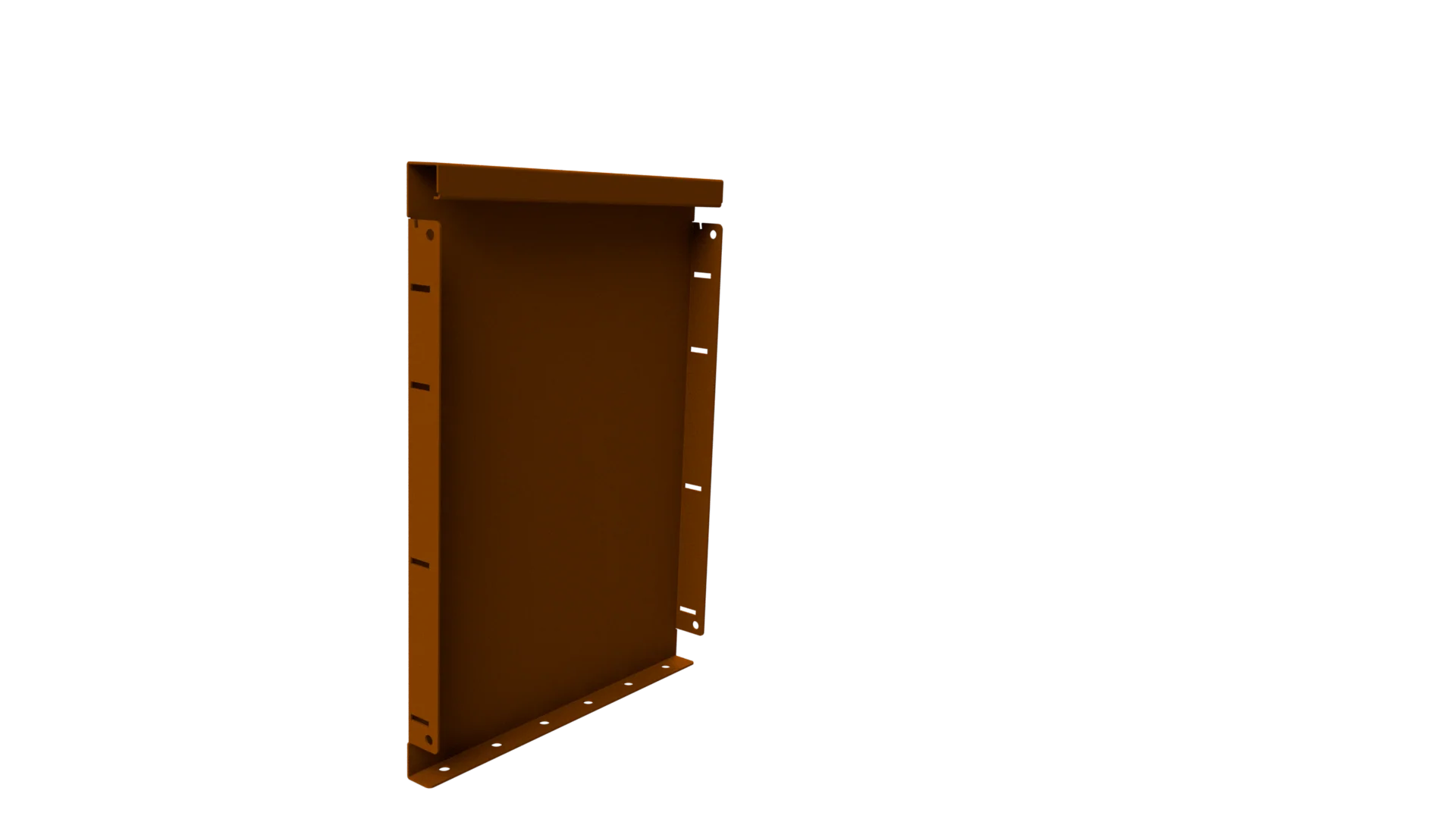

What's Included - Panel Dimensions

Large Panels:

• 2 × 71" panels

Medium Panels:

• 2 × 39.38" panels

Short Panels:

• 2 × 31.5" panels

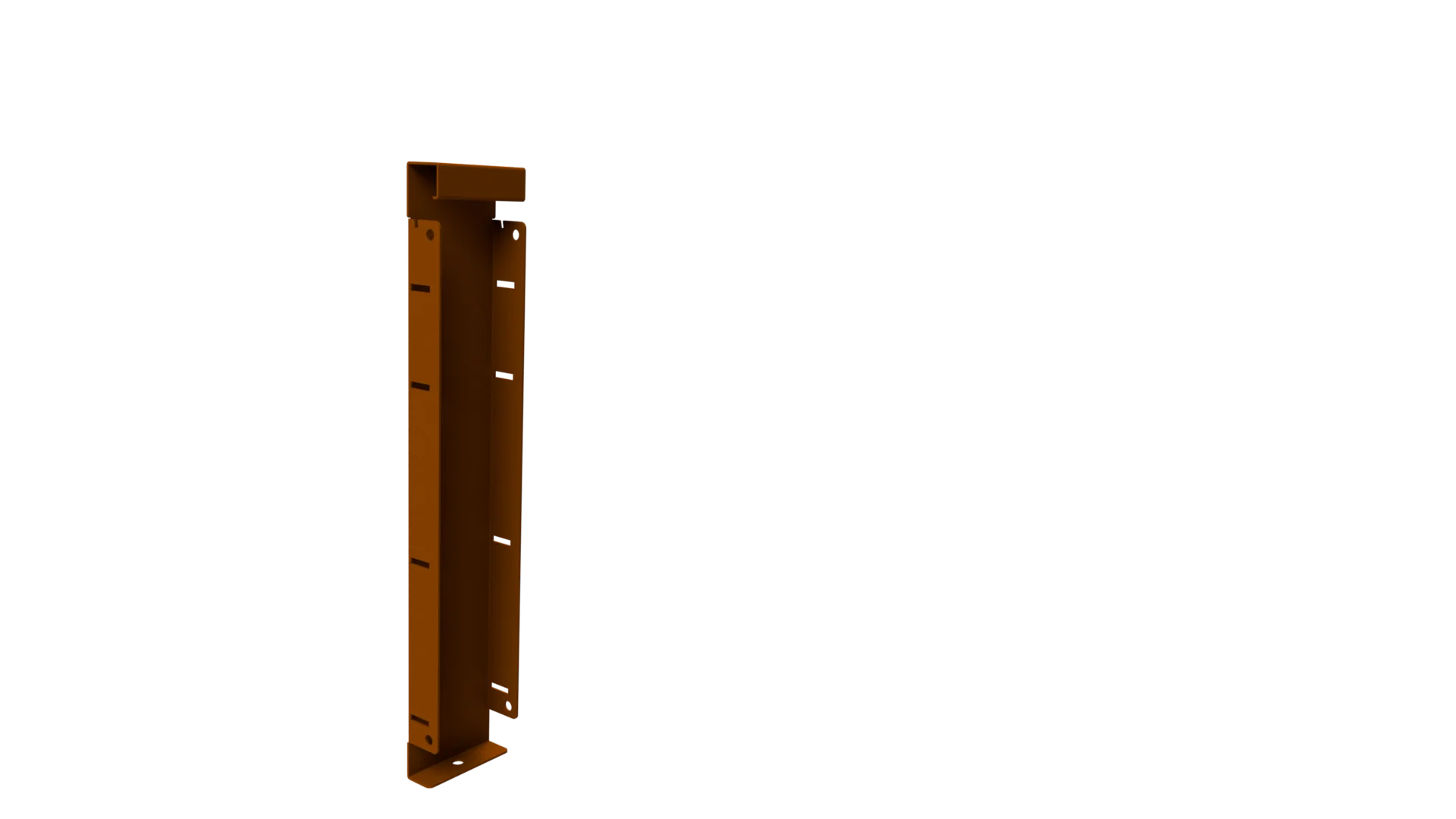

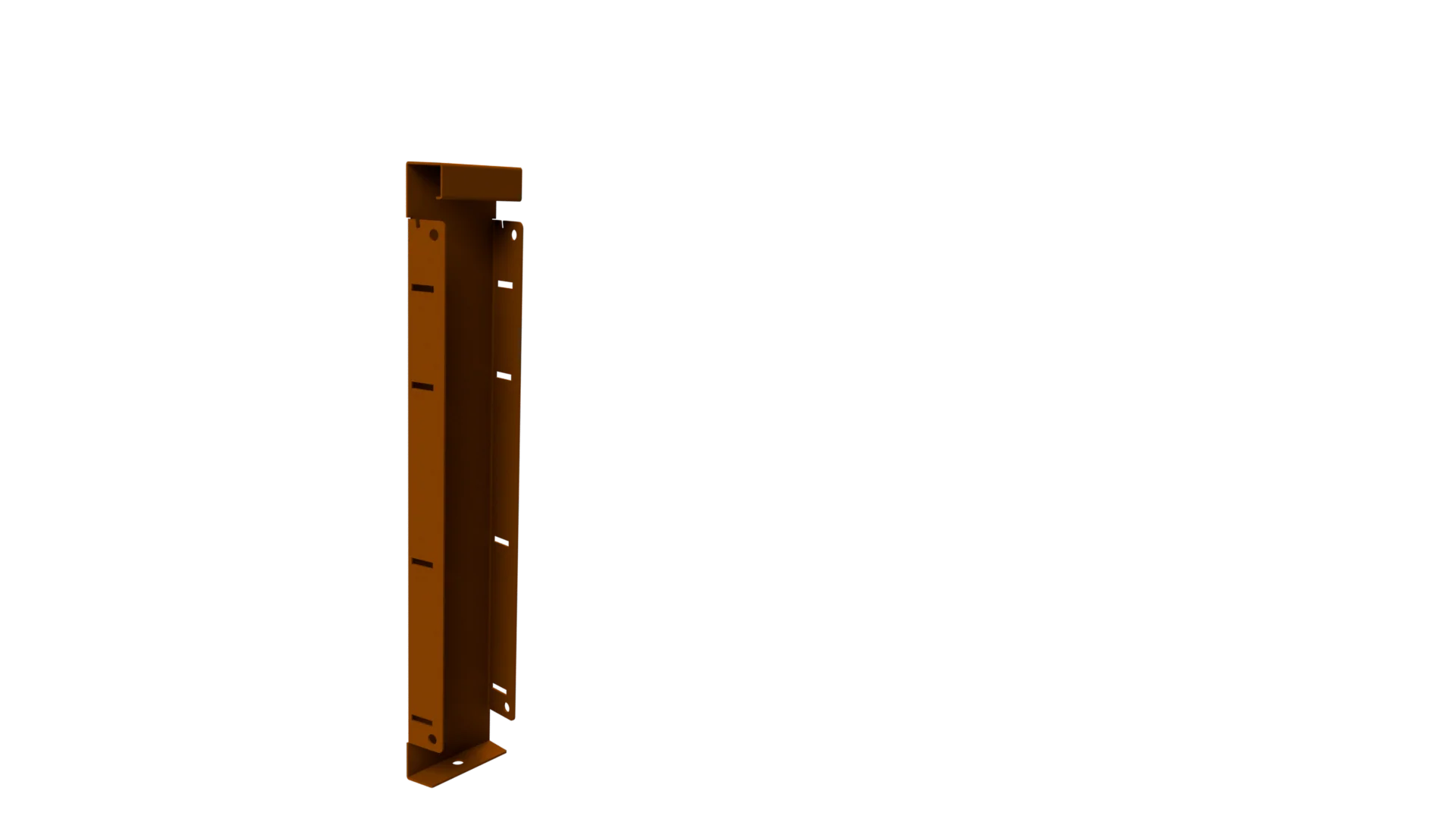

Filler Pack: (2 per box)

• 2 × 15.75" panels
• 2 × 8" panels
• 2 × 4" panels

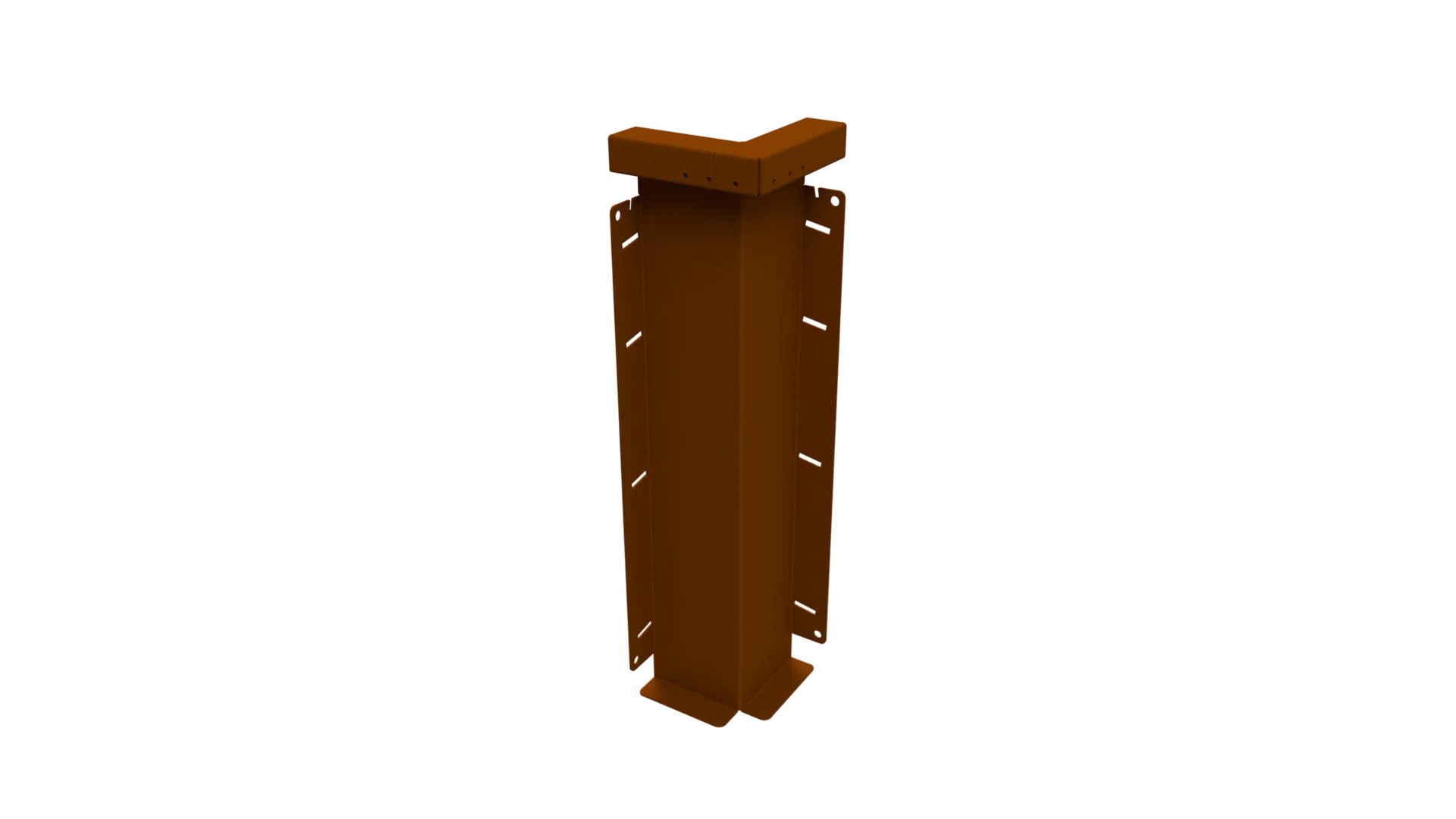

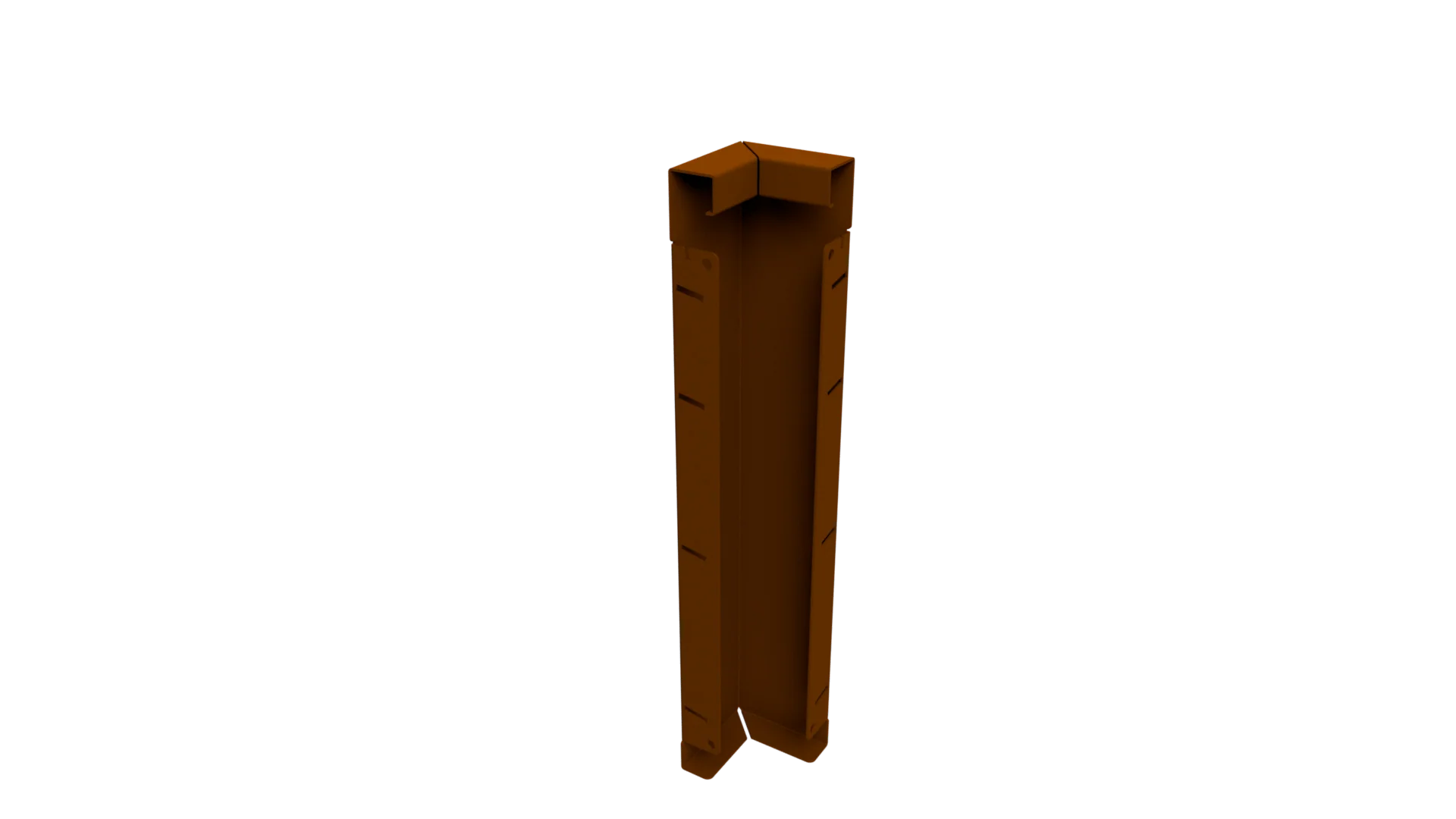

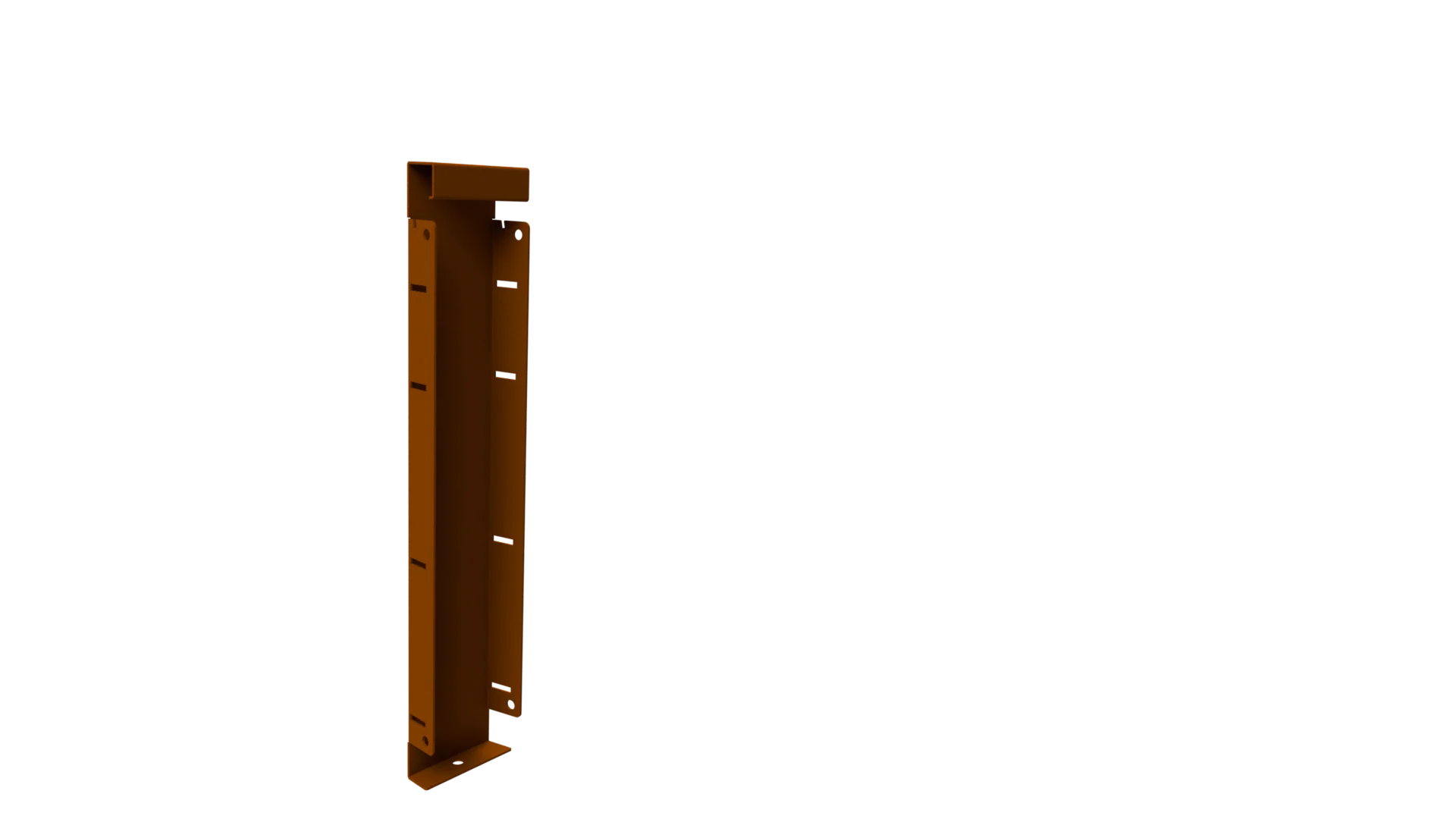

Specifications: 2mm thick steel, 8mm top edge. Corners measure 4" on each side of the 90° bend.

Choose Your Bracing System

Select the bracing method that works best for your installation:

1. Cross Bracing Straps (for parallel panels up to 75" wide)
40" adjustable straps break off in 2" increments. Combine two straps for wider planters.

• Large Panels (71"): 2 straps needed
• Medium Panels (31.5" and 39.37"): 1 strap needed

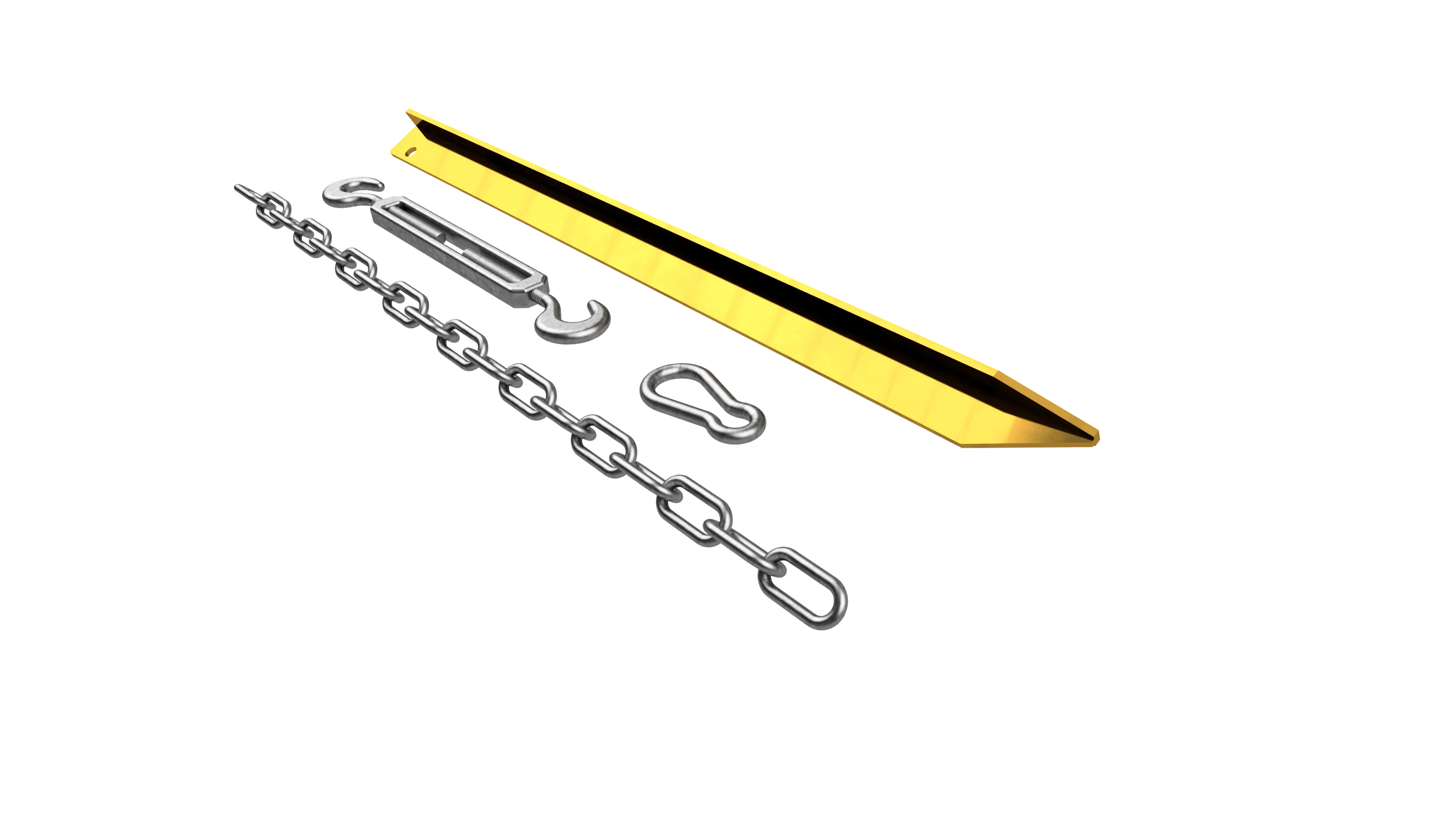

2. Universal Bracing System (tie-back with turnbuckle)
Adjustable chain and turnbuckle create constant tension when backfilled, preventing bowing.

• Large Panels (71"): 4 units needed
• Medium Panels (31.5" and 39.37"): 2 units needed

3. Large Anchor Posts (43" galvanized posts)
Pound into ground and secure with self-tapping screws (included).

• Large Panels (71"): 4 posts needed
• Medium Panels (31.5" and 39.37"): 2 posts needed

Create Custom Curves with Feature Pieces

Add architectural interest with curved bump-outs using 4" feature pieces:

• Straight Insert: 4" filler section for custom spacing
• Internal Insert: 4" section with 15° angle for inward curves
• External Insert: 4" section with 15° angle for outward curves

Installation Made Easy

📹 Watch the Installation Video:

Download Complete Installation Guide (PDF)

Frequently Asked Questions



Q: How long does the rust patina take to develop?
A: Typically 3-6 months depending on your climate and weather exposure. Wet climates rust faster than dry climates.

Q: What's the soil capacity?
A: Varies by configuration. A 4'×8'×22" bed holds approximately 44 cubic feet of soil (about 1.25 cubic yards).

Q: Can I stack these to create taller beds?
A: No, the support system and panels are meant to hold up to 22 inches in level backfill.

Q: Which height should I choose?
A: 22" is ideal for deep-rooted vegetables like tomatoes, carrots, and root crops. For shallower beds, see our 9.5" Zero Flex or 15.75" Zero Flex.

Need Help Planning Your Project?

We know all these choices can be overwhelming! Our team is here to help you design the perfect configuration and ensure you have all the parts you need.

Contact us:
Phone: 540-219-1758
Email: [email protected]

We'll help you calculate exactly what you need for your custom design.
